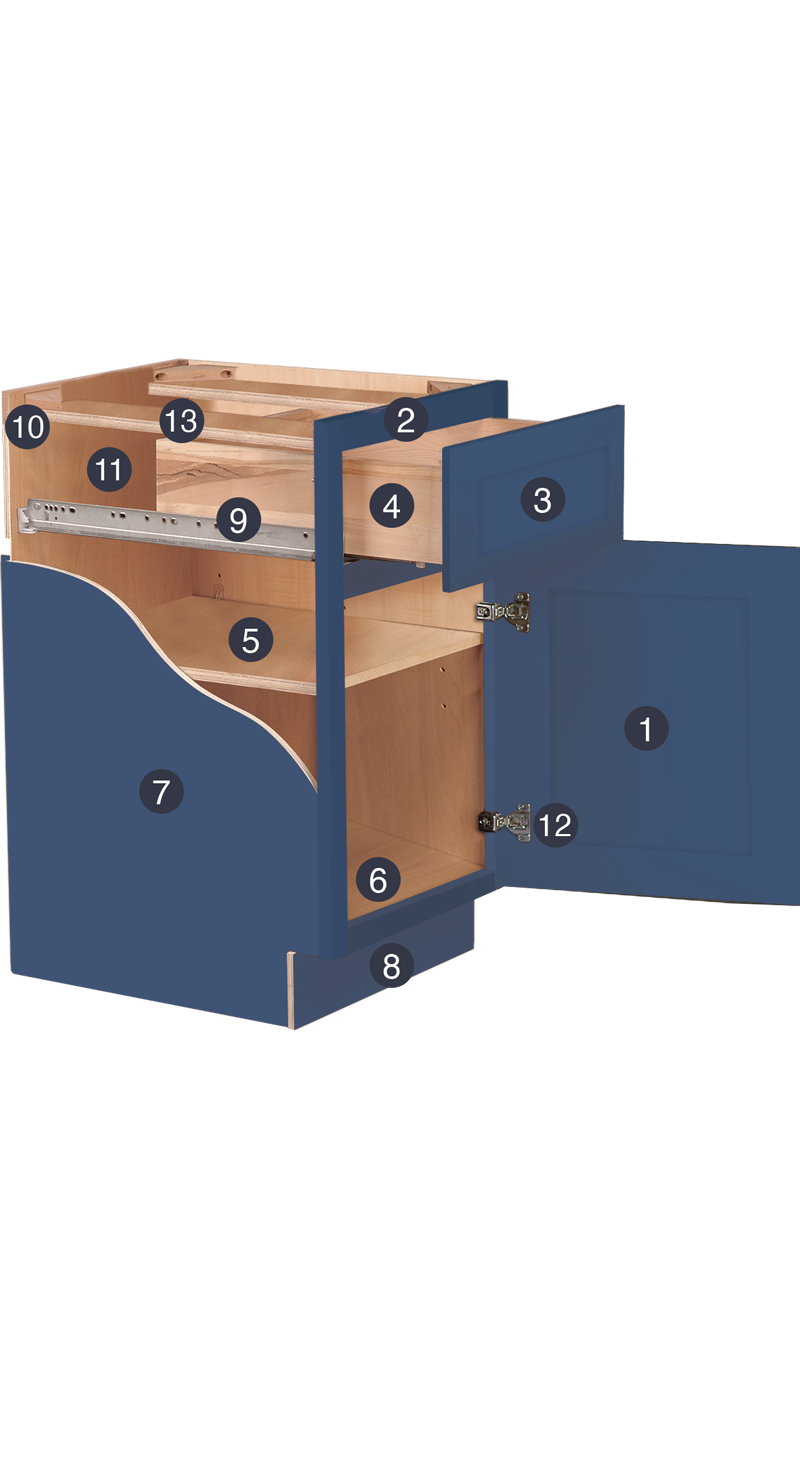

Base Cabinets Specs & Materials
1. Door - Solid wood door frames with mortise and tenon construction based on selected style.
2. Face Frame - 3/4” solid wood face frame.
3. Drawer face - Five piece solid wood frame with MDF center panel based on selected style.
4. Drawer - 3/4” solid wood dovetailed drawer.
5. Shelf - 3/4” full depth veneered shelves adjustable shelf with UV finish and edge banding. Stainless steel shelf clips lock into pre-drilled holes in the bottom of the shelf for support.
6. Bottom - 1/2” veneered plywood with UV finish.
7. Side Panel - 1/2” veneered plywood with UV finish.
8. Toe Kick - 1/2” matching veneered plywood toe kick.
9. Drawer Slides - Undermount full extension soft close slides.
10. Corner Support - Wood corner supports for added stability and structural support.
11. Back - 1/2” veneered plywood with UV finish interior.
12.Hinge - Concealed 6 way soft close.
13. Plywood Support Beams - 1/4” structural support beams are utilized for additional stability
![wall cabinets - blue shaker - specifications and materials](http://manakitchens.com/cdn/shop/files/cabinet_parts_-_wall2_59248115-4b40-4915-b5a1-67c4e4ebab9c.png?v=1684515970&width=1500)

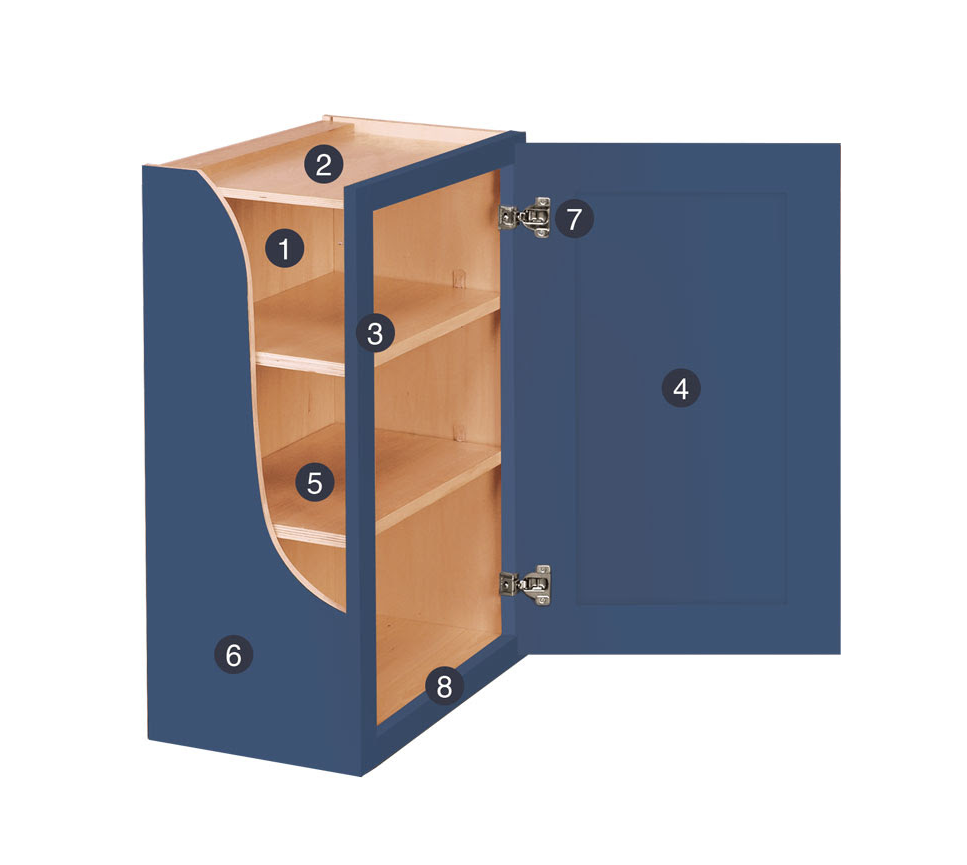

Wall Cabinets Specs & Materials
1. Back - 1/2” veneered plywood with UV finish.
2. Top - 1/2” veneered plywood with UV finish.
3. Face frame - 3/4” solid wood.
4. Door - 3/4” solid wood door frame with mortise and tenon construction.
5. Shelf - 3/4” veneered plywood adjustable shelf with UV finish and edge banding. Stainless steel shelf clips lock into pre-drilled holes in the bottom of the shelf for support.
6. Side Panel - 1/2” veneered plywood with UV finish.
7. Concealed hinge - 6 way adjustable.
8. Bottom - 1/2” veneered plywood with UV finish.
